CB Radios - Range Update

Range of new CB Radios

Click to download FULL PDF - Bulletin 1386

Vapormatic is pleased to announce product updates to the existing range of high quality CB radios. The product group includes single and dual voltage radios, ensuring the range caters for large commercial and agricultural vehicles. In addition to this, VLC5786M features a short body DIN mount ensuring a good fit in even the smallest spaces.

Part No: VLC5784

12V Compact Radio

12V Compact Radio

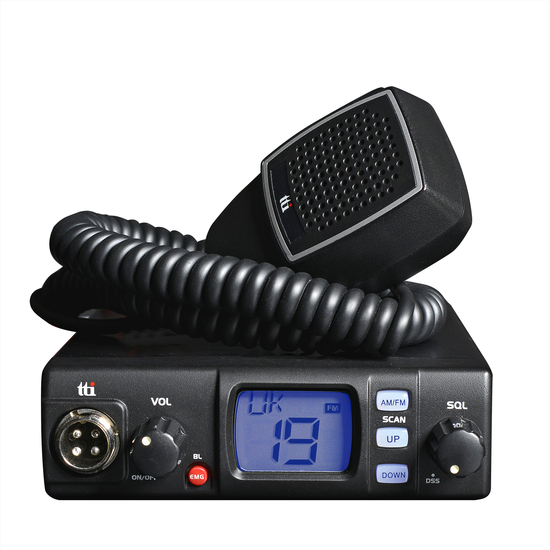

Part No: VLC5785

12/24V Compact Radio

12/24V Compact Radio

Features: - AM / FM operation (subject to country regulation) - USB charging socket (VLC5784 only) - Upgraded DSC (Dynamic Squelch Control - 12V DC input - Scan function - Keypad lock - Blue / red / purple illumination display (VLC5784 blue illumination only) - 4 watts output power - Menu mode - beep tone on/off, TOT, backlight dimmer - Emergency channel (9/19)

Technical Specification - Frequency Range: 26.56 MHz - 28.00MHz (26.965MHz - 27.405MHz (CEPT), 27.60125MHz - 27.99125MHz (UK) - SO239 antenna connector - Traditional bracket mount (for under dash installation) - 4 Pin plug-in microphone - Dimensions (mm): 135(L) x 124(W) x 37(H) - Weight: 655g

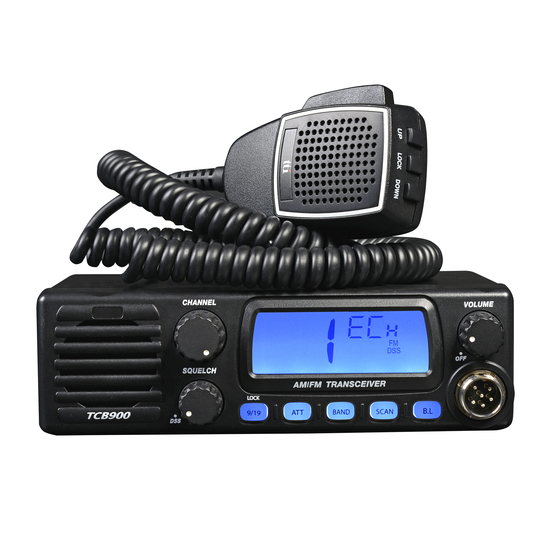

Part No: VLC5786

Short Body CB Radio with Front Speaker 12/24V

Short Body CB Radio

Premium, short body, dual voltage 12 / 24V CB radio (L94 x W170x H51mm) perfect for dash-mounting and eliminating the need for additional speakers. Front mounted speaker delivers crisp and clear audio - ideal for use in noisy vehicle cab environments. Short-body depth (just 94mm) for easy DIN radio slot or traditional dash mounting in cabs where space is restricted. Channel change buttons also located on microphone for ease of use. Multi-standard specification includes all legal UK channels and can also be used in other EU countries by simply selecting individual 'country code'.

Features and Benefits

- Front speaker - no need for separate speakers! - DIN size short body - Inbuilt attenuator - regulates close, strong incoming signal to reduce distortion - Microphone gain - Speaker mute - AM / FM Operation (Subject to Country regulation) - Upgraded DSC (Dynamic Squelch Control) - 12 / 24V DC input - Scan function - Keypad lock Blue / Red / Purple illumination display - 4W output power - Menu mode (microphone gain, call tone, beep tone on/off, TOT, backlight dimmer) - Emergency channel (9/19)

Technical Specifications - Frequency Range: 26.965MHz - 27.99125MHz (26.965MHz - 27.405MHz (CEPT), 27.60125MHz - 27.99125MHz (UK) - SO239 antenna connector - Traditional bracket mount (for under dash installation) - 6 Pin plug in microphone - Dimensions (mm): 94(L) x 170(W) x 51(H) - Weight: 978.5g

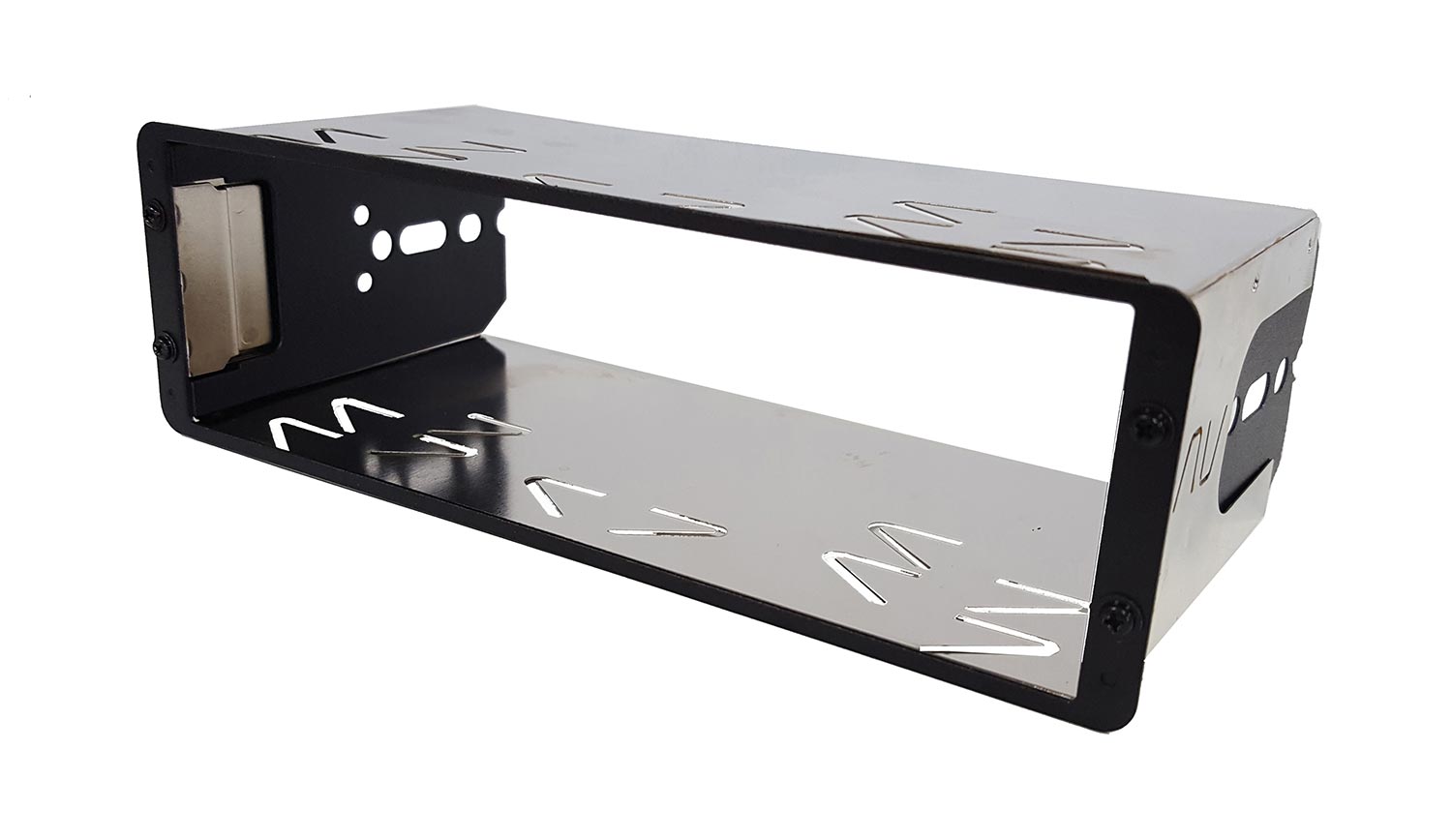

Part No: VLC5787

DIN Mount Cage Kit

DIN Mount Cage Kit

Mounting kit allows fitment of VLC5786 CB radio neatly into a vehicle radio DIN slot for a professional looking installation. High quality, all-metal mounting cage. Slot dimensions (mm): 172(W) x 53(H).

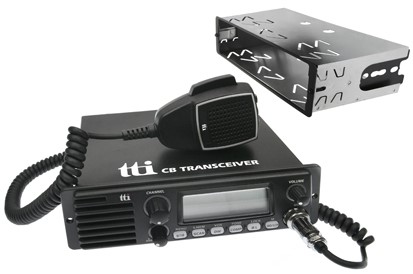

Part No: VLC5741

CB Radio - Hand Free 12V

CB Radio Hands Free 12V

Premium, hands-free 12V CB radio 190(L) x 165(W) x 58(H). Perfect for dash-mounting in DIN-sized slot. Inbuilt front-speaker eliminates the need for additional speakers and delivers crisp, clear and unobstructed audio - ideal for use in noisy vehicle cab environments. Features the latest VOX and CTCSS technology to provide maximum functionality and versatility. Includes DIN mounting cage as standard.

Features and Benefits

  • Front speaker - no need for separate speakers!
  • 4W output power
  • Multiple bands for Europe wide operation
  • AM/FM operation (Subject to Country regulation)
  • Variable colour illumination (green, amber, blue)
  • VOX (Voice Operated Transmit) for hands free transmission
  • CTCSS technology enables you to communicate only with people you want by filtering out users on the same frequency without the CTCSS code
  • Channel memory
  • Last channel recall
  • Remote channel up/down (operated from mic)
  • External speaker connection
  • Keypad lock
  • External S-Meter connection
  • Includes DIN mounting cage

Technical Specifications

  • Frequency Range: 26.965MHz - 27.99125MHz (26.965MHz - 27.405MHz (CEPT), 27.60125MHz - 27.99125MHz (UK)
  • SO239 antenna connector
  • Traditional bracket mount (for under dash installation)
  • 6 Pin plug in microphone
  • Dimensions (mm): 190(L) x 165(W) x 58(H)
  • Weight: 978.5g

To view the range of CB Accessories, please see the full bulletin.
